Features
It is forged by alloy steel which is heat treated thus ensuring high intensity and high toughness.

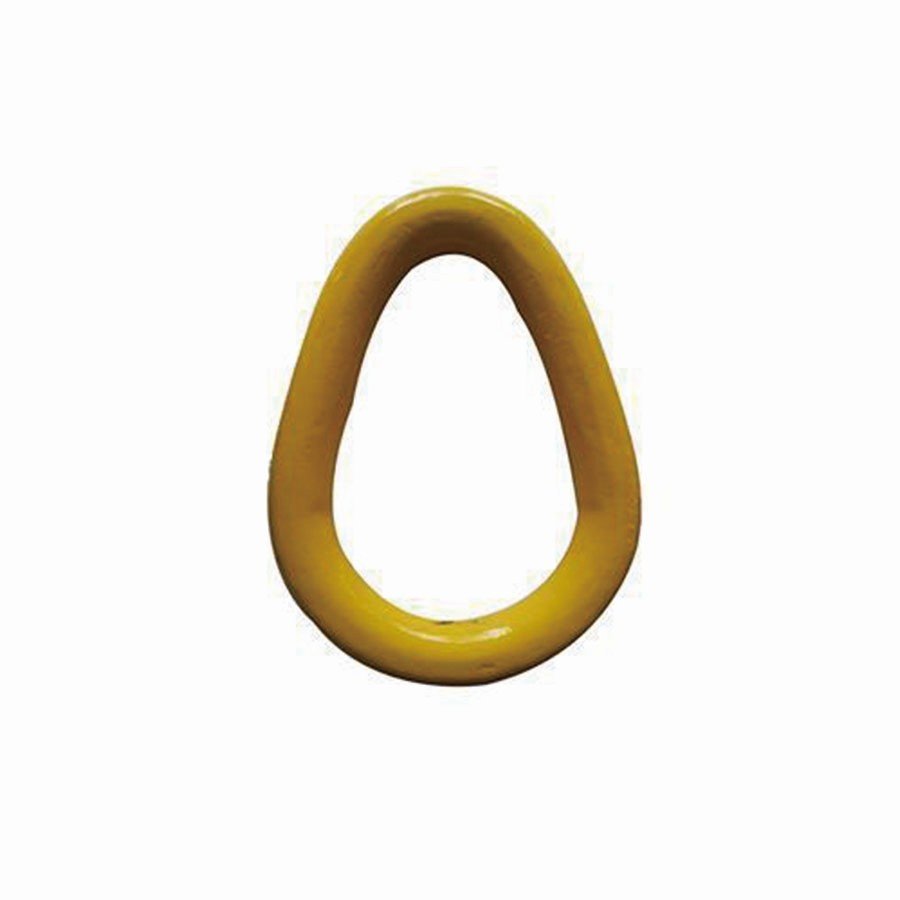

Forged Alloy Steel Lifting Link
Features
It is forged by alloy steel which is heat treated thus ensuring high intensity and high toughness.
Product Description
Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A | B | C | D |
SR034-3/8 | 0.1 | 1.6 | 8 | 10 | 28.5 | 19 | 10 |
SR034-1/2 | 0.25 | 3.2 | 16 | 12.5 | 38 | 25.5 | 12.5 |
SR034-5/8 | 0.5 | 4.1 | 20.5 | 16 | 47.5 | 32 | 16 |
SR034-3/4 | 0.8 | 5.6 | 28 | 19 | 57 | 38 | 19 |
SR034-7/8 | 1.4 | 6.4 | 32 | 22 | 67 | 44.5 | 22.2 |
SR034-1 | 1.9 | 11 | 55 | 25 | 76 | 51 | 25.4 |
SR034-1-1/8 | 2.92 | 13.9 | 69.5 | 28 | 86 | 57 | 28.5 |
SR034-1-1/4 | 3.75 | 16.3 | 81.5 | 32 | 95 | 63.5 | 32 |
SR034-1-3/8 | 5.12 | 19.5 | 97.5 | 35 | 105 | 70 | 35 |
SR034-1-1/2 | 6.5 | 24.6 | 123 | 38 | 114 | 76 | 38 |
SR034-1-5/8 | 8.4 | 28.4 | 142 | 41.5 | 124 | 82.5 | 41.3 |
SR034-1-3/4 | 10.21 | 38.5 | 192.5 | 44.5 | 133 | 89 | 44.5 |
SR034-1-7/8 | 13.15 | 43.5 | 217.5 | 48 | 143 | 95.5 | 47.6 |
SR034-2 | 15.42 | 46.5 | 232.5 | 51 | 152.5 | 102 | 51 |
SR034-2-1/4 | 21.78 | 64.9 | 324.5 | 57.5 | 171.5 | 114.5 | 57 |
SR034-2-1/2 | 29.94 | 66.8 | 334 | 63.5 | 190.5 | 127 | 63.5 |
SR034-2-3/4 | 39.92 | 98.4 | 492 | 70 | 209.5 | 140 | 70 |
SR034-3 | 51.71 | 103.4 | 517 | 76.5 | 229 | 152.5 | 76 |
SR034-3-1/4 | 66.23 | 118.9 | 594.5 | 82.5 | 248 | 165 | 82.5 |
SR034-3-1/2 | 82.10 | 126.6 | 633 | 89 | 257.5 | 178 | 89 |
SR034-4 | 122.93 | 169.2 | 846 | 102 | 305 | 203.5 | 101.5 |
